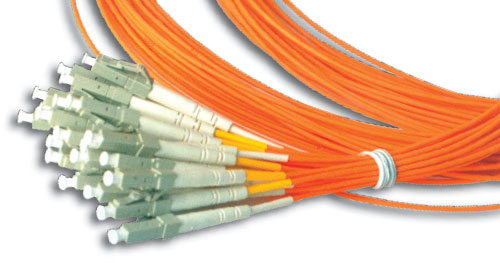

Patch Cord Pigtail
FONSBD Patch cords and Pigtails are delivered with Ceramic Zirconia Ferrules and high quality houses. The cables are tested and manufactured according to the (TU and Bell Core Standards and are delivered with all test reports. All common Patchcords and Pigtails are on stock and can be delivered as needed. All cables are made from PVC/LSZI-1 materials o’- as required.
FONSBD assembles multiple varieties of Fiber Optical Patchcords and Pigtails.
Features
- Single-mode & Multi-mode (50/1 125,623/125, 0M3)
- CoreType:G652D&G657A
- LSHZ Cable
- Standard & custom configurations
- Precision end face geometry testing
- UPC/APC polished connector
- High density packaging, reliability and efficiency
Benefits
- Excellent side load performance
- Easy installation
- Environmentally stable
- Factory terminated & tested
- Customized for unique application
- High strength relief
- Low insertion loss
- Ultra low return loss
Performance Specification
- MMIL<0.3OdB
- SM IL <0.20 dB
- RL>55 dB & 65 dB

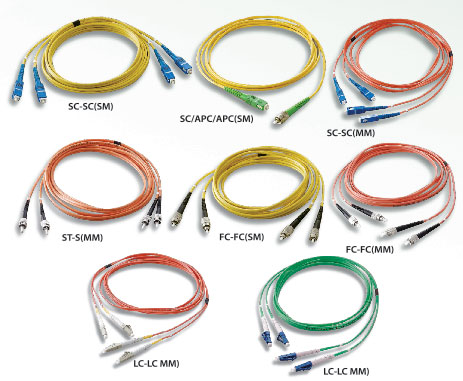

Patch Cord
Featrues
-
No minimum quantity required: we take orders, with even 1 piece at any
customized lengths, any connectors or any polishing.
- Instant delivery: the lead-time is only 24 hours upon receipt of your
orders.
- Each single piece is strictly inspected: both insertion loss and return Loss are hand-written on the label for individual package.
- Each individual cord is packed with bubble pack first and re-packed with
another layer of PE pack first and re-packed with another layer of PE plastic bag to ensure the securest protections.

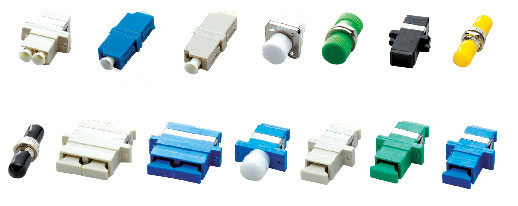

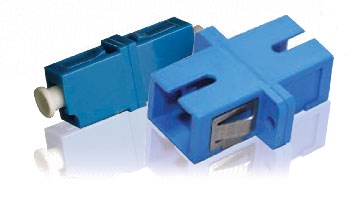

Adapter
FONSBD can supply variety of Fiber Optic Adaptors and have common types in stock. Also a number of special Adaptors are available in stock. The Adaptors are produced according to the ITU and Beilcore Standard with either Ceramic Zirconia or Metal Sleeve Most Adaptors are produced in Simplex and Duplex versions.
Following standard codes are used
- Beige for Multi-mode Fiber
- Blue for Single-mode Fiber
- Green for Angled Fiber Connectors
Applications
- FTTX. Gpon, Epon Technology
- Telecommunication Networks
- CATV Networks
- Active Device Termination
- Local Area Networks
- Fiber to the borne
Features
- Low insertion loss
- Low back reflection loss
- Easy installation
- Environmentally stable
