Cable Management

Different types of cable management system are available from FONSBD for making your network standard

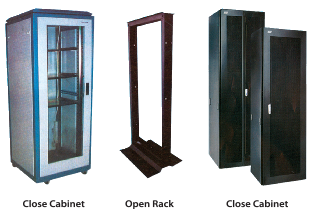

Open Rack

Size 3’, 4’ & 7’

The 19” format open frame rack and rack floor mount products are available in 3,4 and 7 feet height and in natural black electrostatic powder coat finish. The rails are tapped # 12-24 front and rear in EIA Compliant spacing. They are designed with mounting holes which allow anchoring to the floor.

Features:

• “U” shaped rails 3” x 3/16 taped both front
• Compete with assembly hardware and set of # 12-24 tapped equipment screws
• Mounting rails on front of enclosure only
• Open frame rack meets or exceeds EIA-310D standards
• Base with perforated holes for floor anchoring
• Easy to assemble
• Laminated Steel 14 AWG rack floor mount brackets


Wall Mount Close Cabinet
Size; 19’ (w) x 15 U, 12 U, 9 U, 6U (H) x 450 mm (D)

• Opening direction Front Glass Door
• Adjustable Mounting Depth
• Lockable Doors and Side Panels
• Marked U Position
• Optimized Width-i 911 Standard
• Powder Coat Paint finish
• Quick release Front and Back doors
• Opening of Side Panels
• 4 Point Power-AC
• 1 Cooling Fan hidden in the top
• Cage, Nuts & Screws


Close Cabinet
Size; 1 9t1 (w) x 42 U, 32 U, 9 U, 6 U (H) x 800 mm (D)

• Opening direction Front Glass Door
• Vented Back Door For efficient Cooling effect
• Adjustable Mounting Depth
• Lockable Doors and side panels
• Marked U Position
• Powder Coat Painted finish
• Easy Opening of Side Panels
• 5 Point Position
• Cable Arrangement Holder
• 4 Cooling Fan hidden ¡n the top
• 2 Sliding Rail Tray Cage, Nuts & Screws
• 1 Sliding Rail Tray Cage, Nuts & screws

•
